The Enovix 3D Silicon™
Lithium-ion Cell

Layer

Upon Layer

of Innovation

Ready to power tomorrow’s tech. Today.

Enovix has designed a high-energy, high-capacity battery to power the technologies of the future.

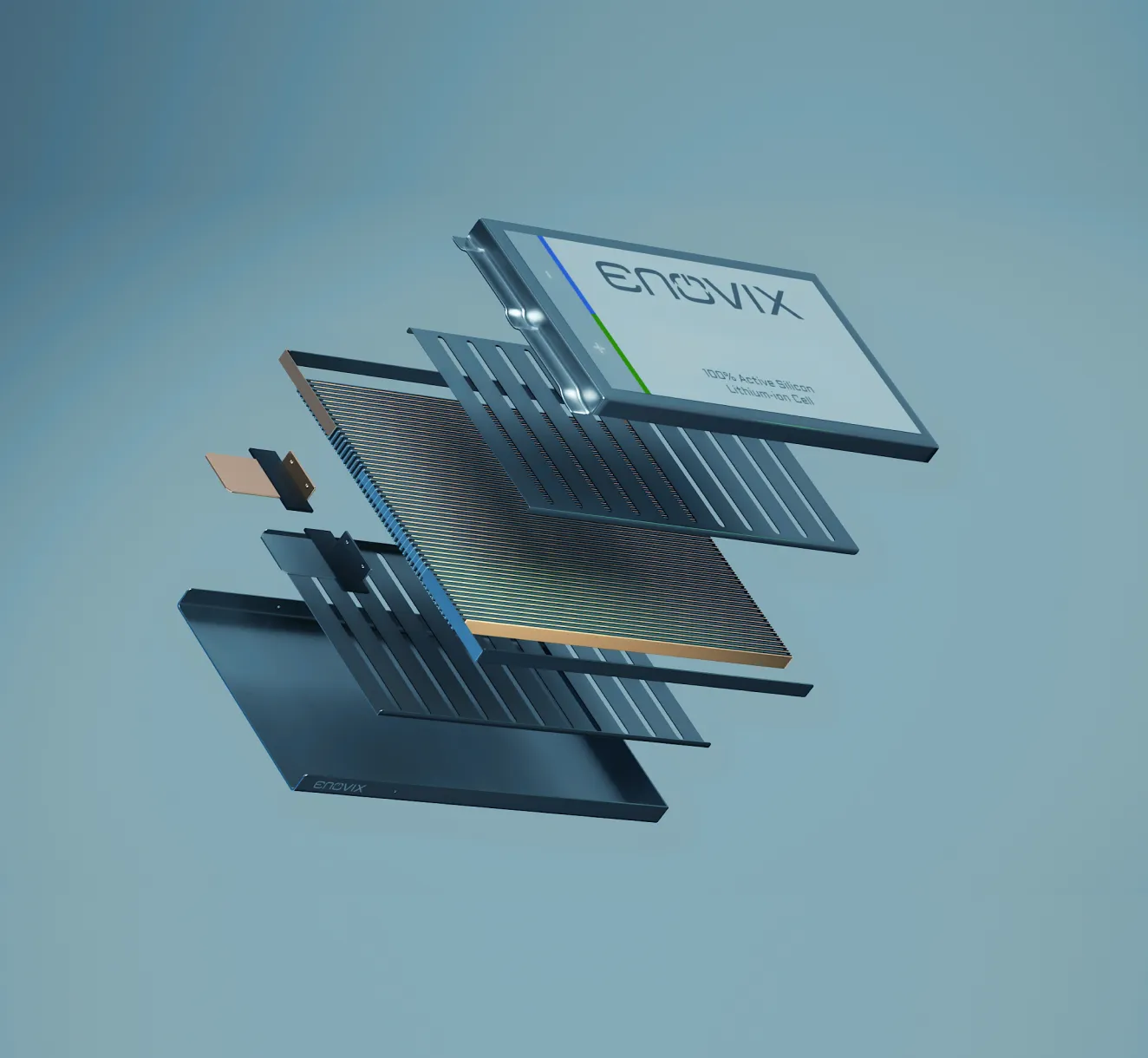

Novel 3D Architecture and Constraint System

Exclusive BrakeFlow™ Safety Technology

High Energy
Density & Capacity

Designed & Assembled
in the US

popup button

Addressing the Four Challenges of Silicon Anodes

Silicon has long been heralded as the next important anode material. Silicon anodes can theoretically store more than twice as much lithium than the graphite anode that is used in nearly all Li-ion batteries today (1800mAh/cm3 vs. 800mAh/cm3).

Silicon’s high energy density, however, creates four significant technical problems that Enovix has solved:

1) First Charge Expansion

Enovix cells have a stainless-steel constraint system surrounding the cell that limits the battery from swelling. We also reorient the electrodes to face a small side of the battery to decrease the required constraining force.

2) First Charge Efficiency

Enovix has developed a “pre-lithiation” process during manufacturing to insert additional lithium source to top-off lithium trapped at formation.

Our batteries can do this practically because the additional lithium only needs to travel a short distance in our 3D architecture to permeate the anode.

3) Cycle Swelling

Enovix manages swelling as a result of cycling with its integrated constraint, limiting swelling to as little as <2% cell thickness after 500 cycles.

4) Cycle Life

The Enovix integrated constraint keeps particles under constant stack pressure, limiting particles from electrically disconnecting and cracking.

It wasn't enough to reimagine the lithium-ion battery, we've also introduced a whole new level of safety.

Learn More

Drop-in Manufacturing Process

Pattern, Stack, Constrain, Repeat

Enovix has applied an innovative approach to Li-ion battery production. The result is precision production tools that have the potential to increase megawatt hour (MWh) capacity relative to a conventional Li-ion battery production line at the same volume. Providing an opportunity for Enovix to achieve a cost-effective, high-volume production process for silicon-anode Li-ion batteries. Just in time for the future.TM

An Industry Prime for Disruption

Eyewear Cell

Model EX01-351144

Designed for eye wear

295 mAh capacity

664 Wh/l energy density

500 cycle life

Wearable Cell

Model EX01-341729

Designed for wearable devices

337 mAh capacity

722 Wh/l energy density

500 cycle life

Handset Cell

Model EX01-513870

Designed for mobile radio handsets

3.34 Ah capacity

882 Wh/l energy density

500 cycle life

Smartphone / Laptop Cell

Model EX01-395578

Designed for smartphones and laptops

4.10 Ah capacity

900 Wh/l energy density

500 cycle life

Game-changing tech needs
game-changing power.

Contact our sales team today to schedule a presentation and discuss your project.
