Flexible Design Batteries | Blended SiC & Graphite

FX Platform

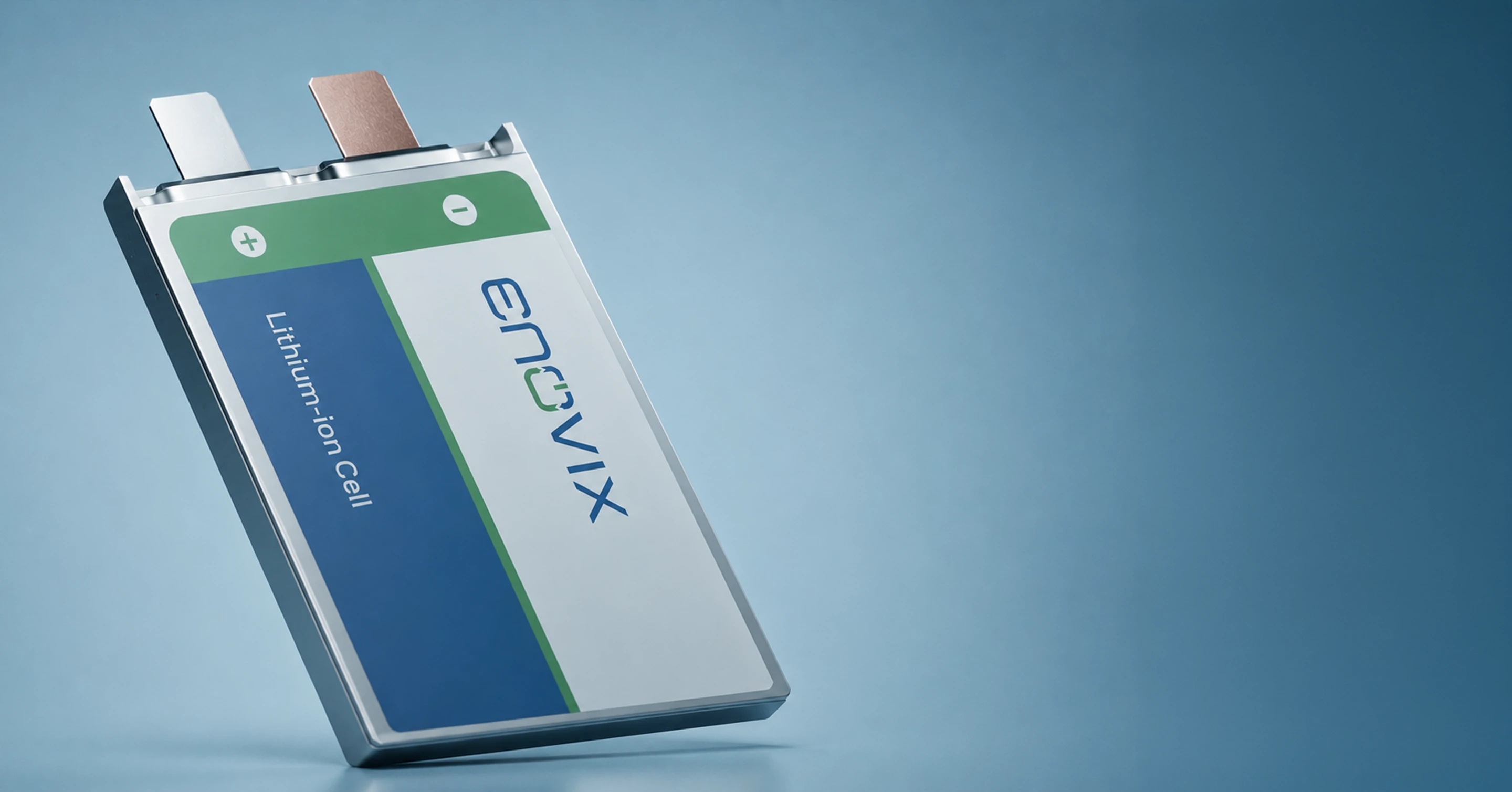

A flexible battery platform available across a wide range of sizes, capacities, and energy densities, designed to meet the needs compact devices from consumer electronics to medical applications.
PRODUCT SPECS
Filter
Filter
Format
Typical Capacity
0Ah
0Ah
Volumetric Energy Density
0Wh/L
0Wh/L
Gravimetric Energy Density
0Wh/Kg
0Wh/Kg
Max Continuous Discharge
Cycle Life
Length
0mm
0mm
Width
0mm
0mm
Thickness
0mm
0mm
Reset

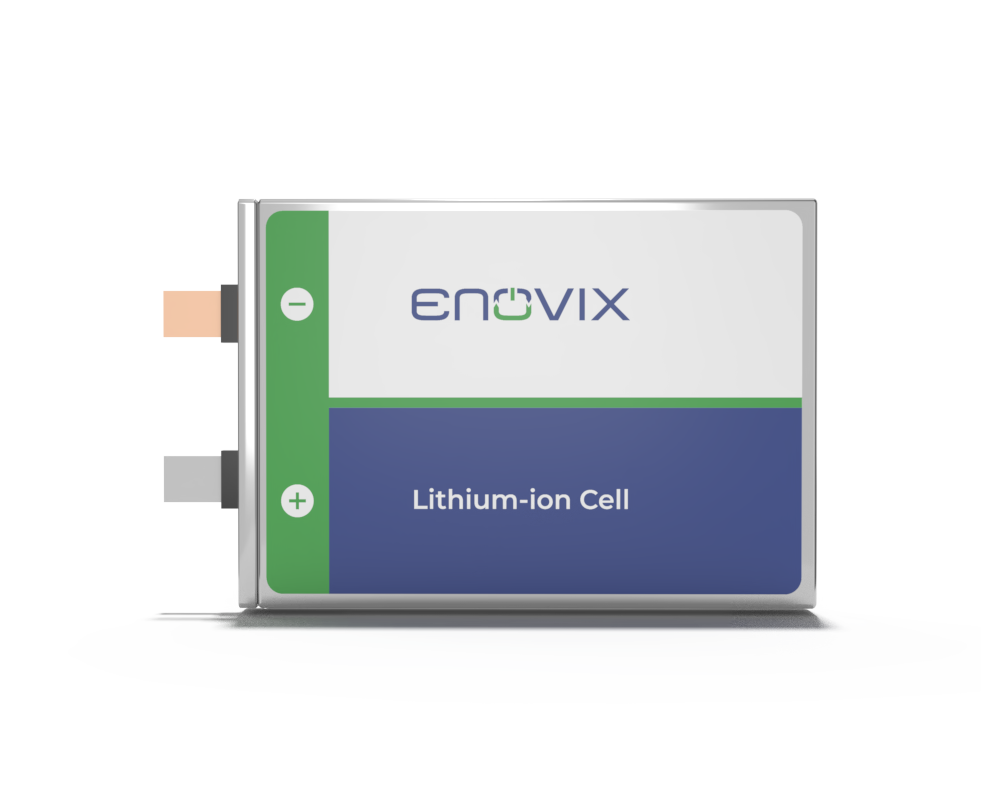

FLPB231723

ENERGY DENSITY

204 Wh/kg

Typical Capacity

95 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
424
0.095
204
24.4
17.7
2.2

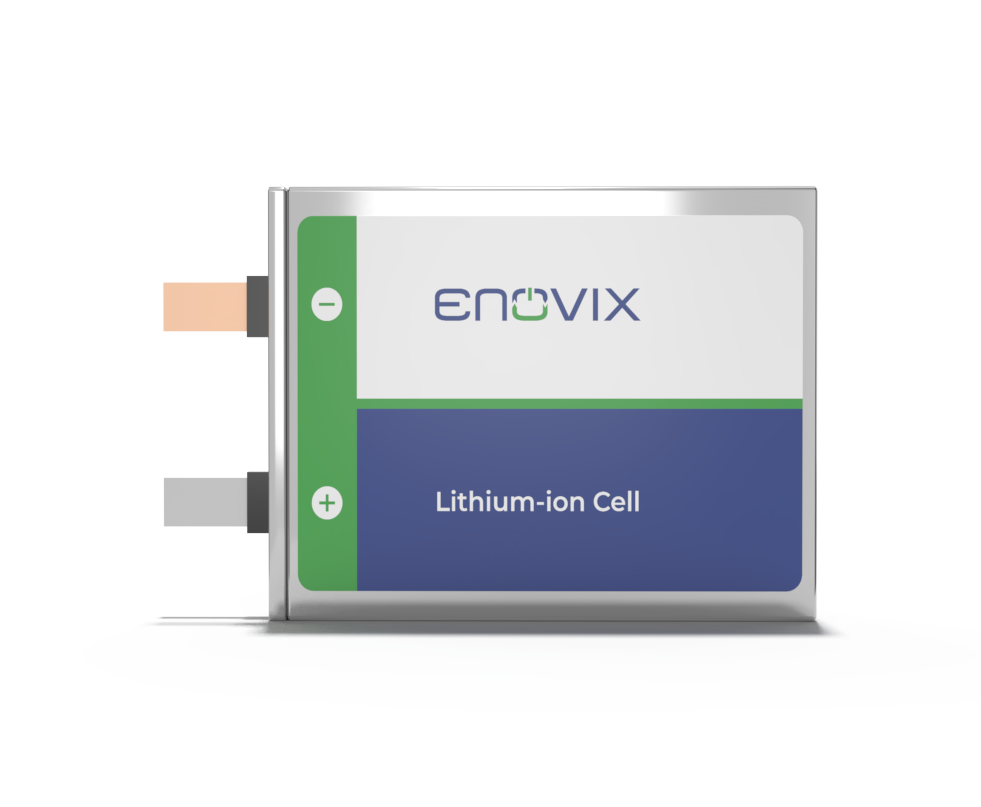

FLPB352030

ENERGY DENSITY

205 Wh/kg

Typical Capacity

200 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
406
0.2
205
29.4
20.2
3.5

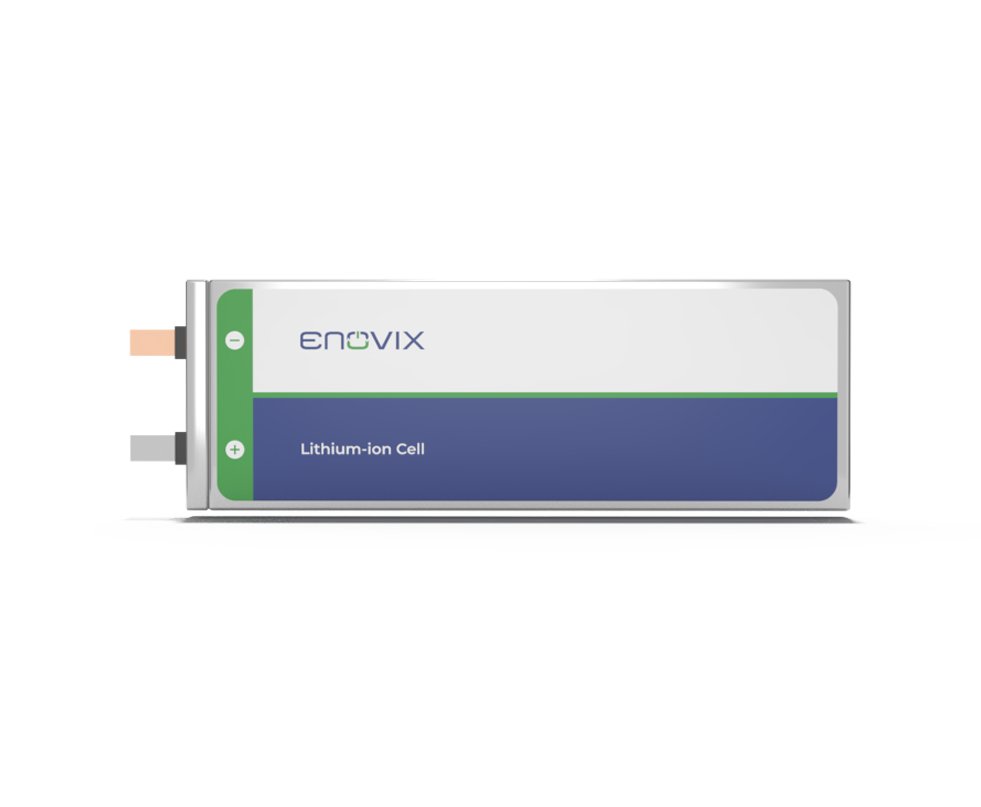

FLPB391133

ENERGY DENSITY

162 Wh/kg

Typical Capacity

120 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
327
0.12
162
33
11.5
3.9

FLPB462536

ENERGY DENSITY

150 Wh/kg

Typical Capacity

450 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
439
0.45
150
35.1
25.5
4.5

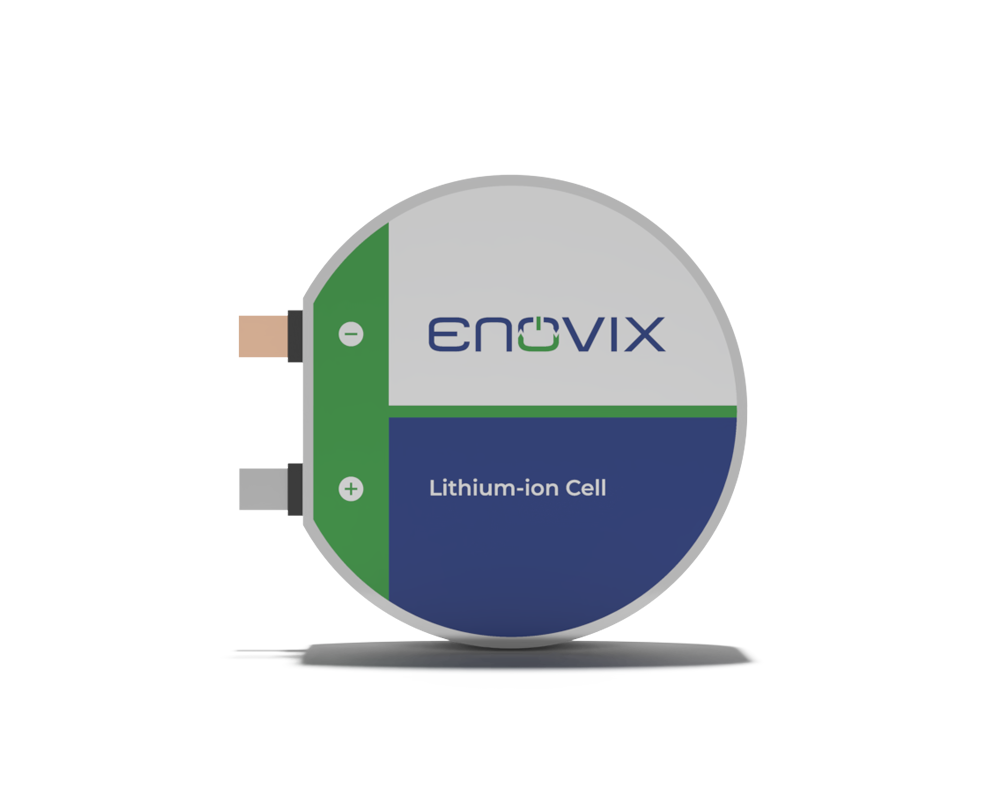

FLPB302828R

ENERGY DENSITY

253 Wh/kg

Typical Capacity

190 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
456
0.19
253
23.95
27.9
3

FLPB493535R

ENERGY DENSITY

211 Wh/kg

Typical Capacity

500 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
460
0.5
211
35
35
4.9

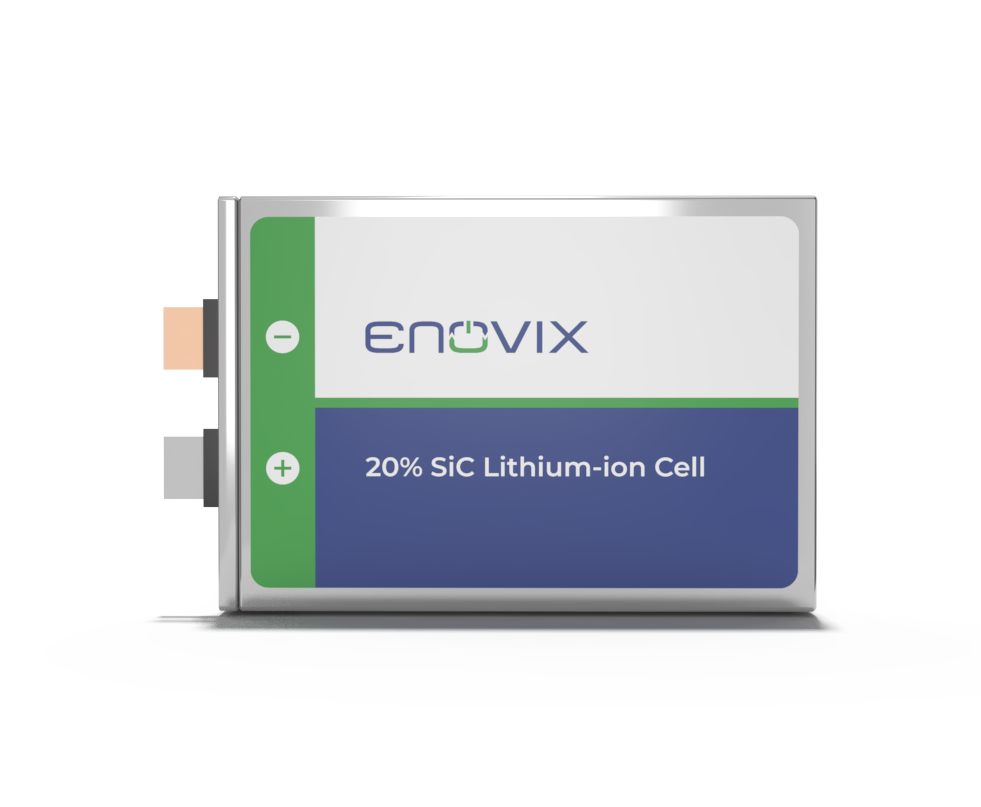

FLPB552536S

ENERGY DENSITY

294 Wh/kg

Typical Capacity

820 mAh

Cycles

500

301–500 cycles
FX-1
Up to 2C
651
0.82
294
36
25
5.5
